Details

---

Product Specification about TCL Elite Series Aircond 1.5Hp

Elite Inverter 1.5Hp TAC-12CSD/XA81I 🔻🔻🔻

Connections :
Liquid Connecting Pipe : 1/4 Inches
Gas Connecting Pipe : 3/8 Inches
Connecting Wiring (Size x Core Number) : 4 x 1.0

Others :

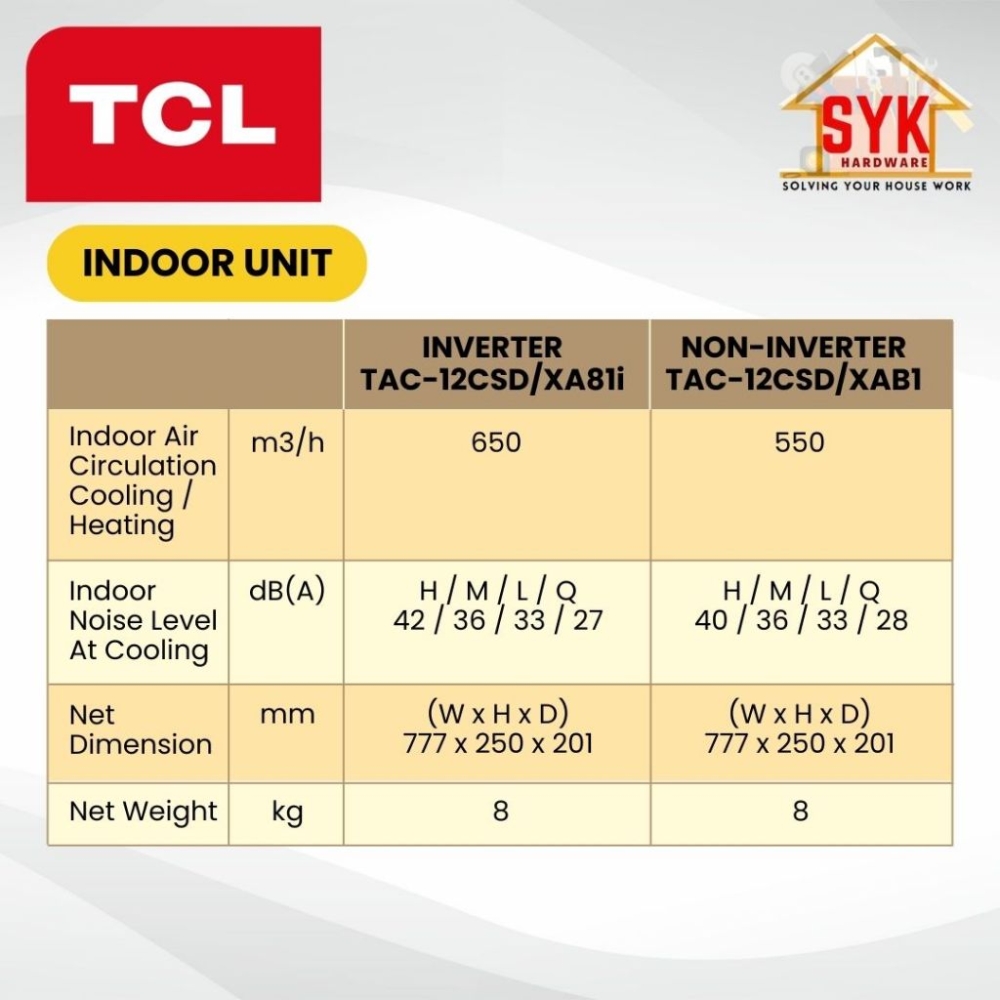

Net Weight Indoor : 8kg
Net Weight Outdoor : 19kg
Body Dimension Indoor (W*H*D) : 777 x 250 x 201 mm
Body Dimension Outdoor (W*H*D) : 712 x 276 x 459 mm
Packing Dimension Indoor : 850 x 320 x 275 mm
Gross Weight Package Outdoor : 23kg
Packing Dimension Outdoor : 765 x 310 x 481 mm
Gross Weight Package Indoor : 10kg

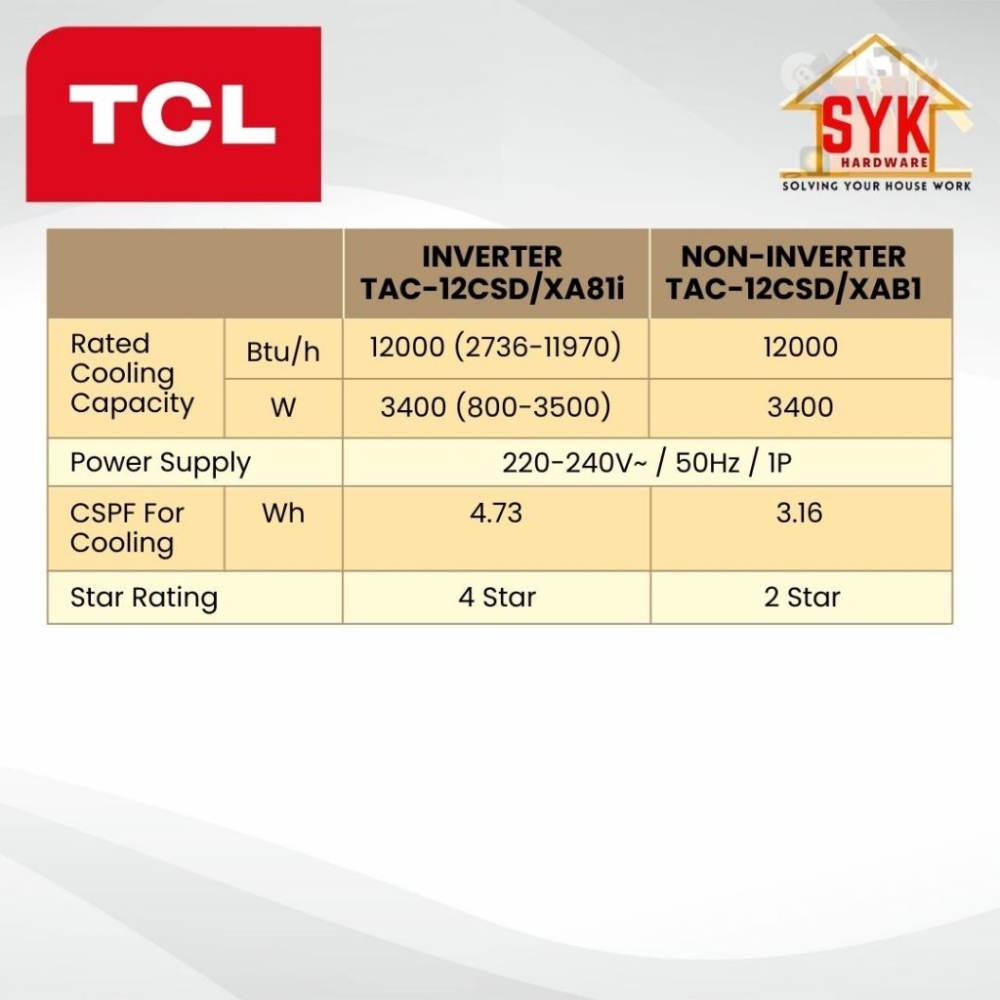

Technical Specifications :
EER For Cooling (W/W) : 4.2
Star Rating (CSPF) : 4 Star
Control Type : Remote Control
Moisture Removal (Liters/h) : 1.2
Power Supply : 220-240V~/50Hz/1P

Electric Data :
Noise Level (Hi) : 42/36/33/27
Charge : 400g
Indoor Air Flow (H)(m3/h) : 650
Refrigerant : R32

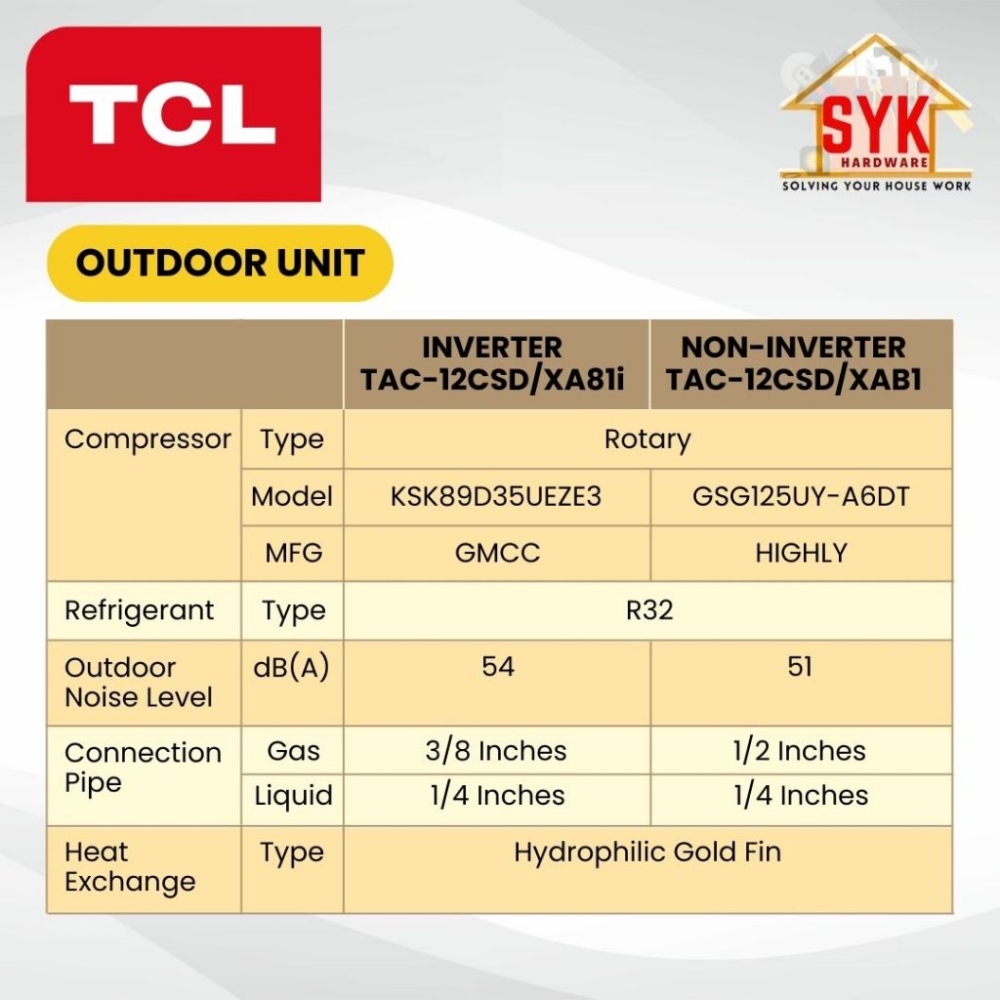

Compressor MFG : GMCC
Rated Current (A) : 5.3 (1~8)
Rated Input Power (W) : 1160 (290~1450)




Elite Non-Inverter 1.5Hp TAC-12CSD/XAC1 🔻🔻🔻

Connections :
Liquid Connecting Pipe : 1/4 Inches
Gas Connecting Pipe : 1/2 Inches
Connecting Wiring (Size x Core Number) : 1.0 x 3

Others :
Net Weight Indoor : 8kg
Net Weight Outdoor : 25kg
Body Dimension Indoor (W*H*D) : 777 x 250 x 201 mm
Body Dimension Outdoor (W*H*D) : 777 x 290 x 498 mm
Packing Dimension Indoor : 850 x 320 x 275 mm
Gross Weight Package Outdoor : 28kg
Packing Dimension Outdoor : 765 x 310 x 481 mm
Gross Weight Package Indoor : 10kg

Technical Specifications :
EER For Cooling (W/W) : 3.16
Star Rating (CSPF) : 2 Star
Control Type : Remote Control
Moisture Removal (Liters/h) : 1.3
Power Supply : 220-240V~/50Hz/1P

Electric Data :
Noise Level (Hi) : 51
Charge : 330g
Indoor Air Flow (H) (m3/h) : 460
Refrigerant : R32
Compressor MFG : HIGHLY
Rated Current : 4.9A
Rated Input Power : 1050.0W
